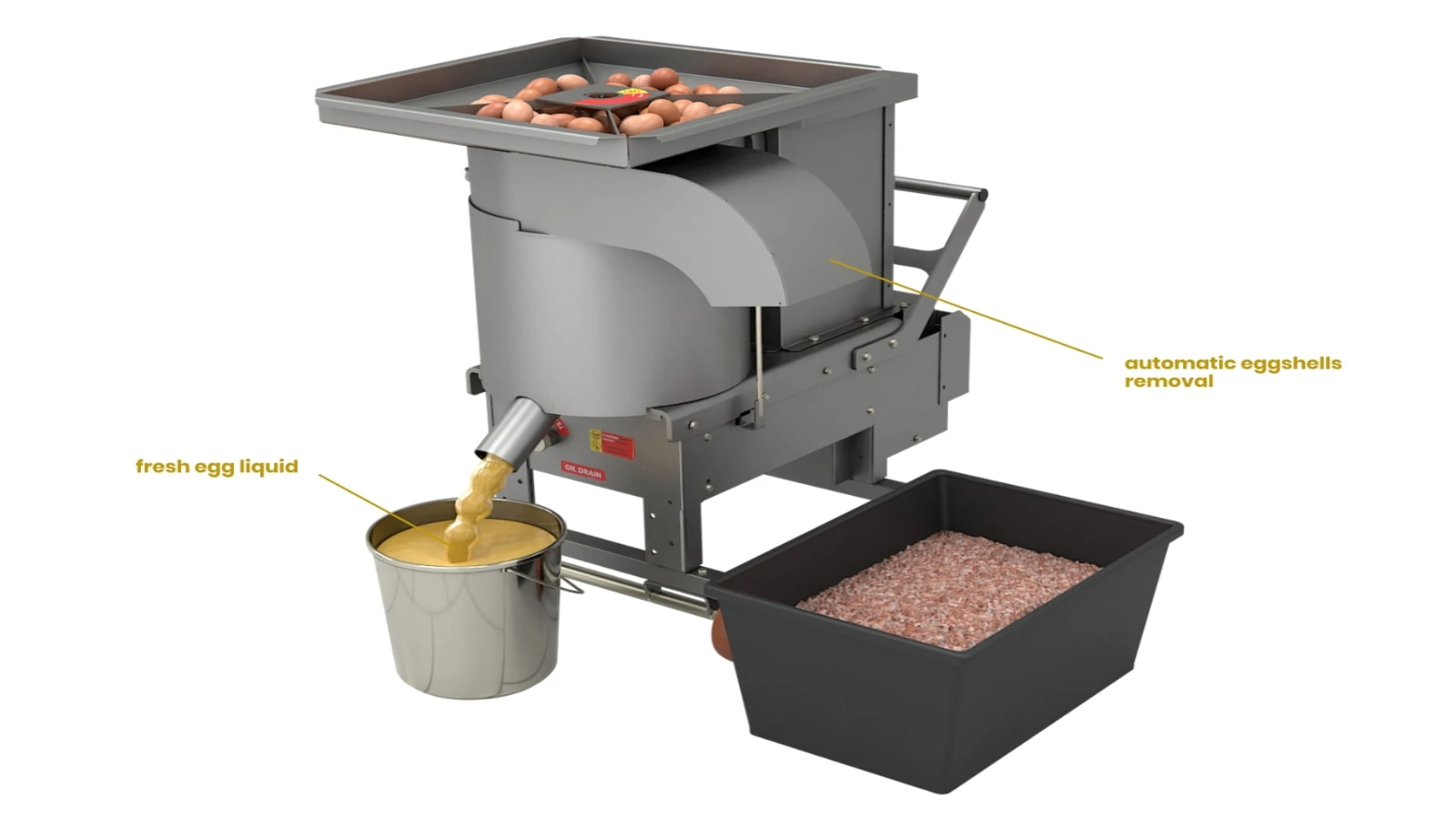

The UDTJ-500 is an automatic, heavy duty centrifugal egg cracker. After filling the machine with eggs, it cracks the eggs and transports fresh egg liquid into a placed container. At the same time, it crushes the eggshells which greatly reduces their volume. After that, the eggshells are automatically removed from the machine. Because if its unique construction, the machine retrieves 98% off egg liquid from the crushed shells, therefore it minimizes costs by reducing the amount of wasted product. As a result, the UDTJ-500 will be the perfect equipment for large bakeries, confectioneries, restaurant chains, egg processing companies and large industrial facilities.
Contact UsDESTINATION: Egg breaking facilities, bakeries,
confectioneries, pasta making companies.
CAPACITY: 120 000 eggs/hour, 200 000
eggshells/hour
REPLACES: 90 people
COMPATIBILITY: MX-2/4/6, UX-2/4/6, PS-1
POWER SUPPLY: 5.5 kW 400 V 3/N/PE 50/60 Hz, 5.5
kW 230 V 3/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: n/d
DIMENSIONS: 1075x907x1040 mm [42x36x41 in.]
MINIMAL WORKSPACE: 2000×2000 mm [79×79 in.]
WEIGHT: 265 kg [584 lbs]
OPERATED BY: 2 persons
ADDITIONAL
INFORMATION
Machine
designed for hard working conditions. Contains a chain gearing (two 3-row
chains submerged in oil). Uses ball bearings. Bearings lubricated with oil by
an oil pump. Shell extraction mechanism has been made with the use of increased
friction resistance steel. Reduces the volume of shells by 80%. Retrieves 98%
of egg mass remaining in the broken shells. Centrifuge is electronically
balanced. Centrifuge allows for breaking speed control. Washing the machine
with the use of pressure washer is prohibited. A minimal amount (approximately
0.1%) of tiny eggshell particles no greater than 0.75 mm [0.03 in.] may be
present in the obtained liquid egg. In order to mitigate this, we recommend
leaving the liquid egg aside for 15-30 minutes before using it so that the
particles will settle to the bottom of a bucket. All parts of our machines
which come in contact with eggs are made out of stainless steel EN 1.4301 (AISI
304).
