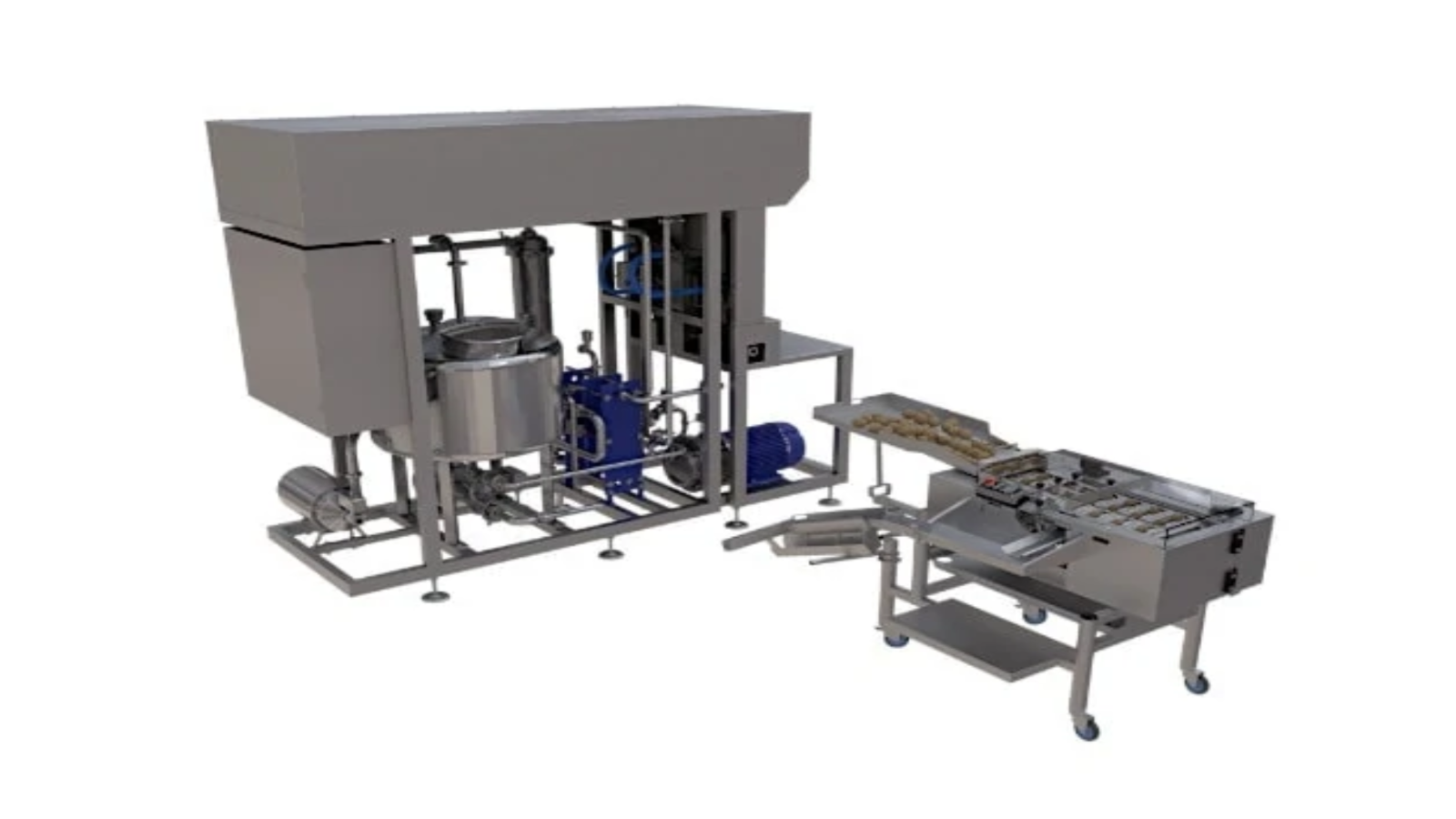

OPS-500 egg liquid pasteurizer


The pasteurizer uses a two-section plate heat exchanger with own heat source – rotor spinning heater. Thanks to using the phyhsical friction and cavitation between the moving particles, thus growing the temperature inside the product itself, it eliminates the need of buying steam or gas boiler. Likewise, thanks to using using rotor spinning heater, gentle homogenization occurs which eliminates the need of buying homogenizer. The homogenization using this process is even more gentle than with standard homogenizer which helps to preserve the functional properties of proteins which remain the same as in fresh eggs. The machine allows for continuous pasteurization for 8 hours straight without cleaning. The rotor spinning heater allows for very precise temperature control of up to 0.1 degrees Celsius [32 degrees Fahrenheit]. All of our pasteurizers are equipped with full automatization and full automatic C.I.P. system. Can work in line with the RZ-3 egg breaker and the MT-3 tunnel washer.

Contact Us

Description

DESTINATION: Large egg processing facilities, bakeries, confectioneries, pasta making companies.

CAPACITY: 500 liters/hour [132 gallons]

REPLACES:  n/d

COMPATIBILITY: MT-3, RZ-3

POWER SUPPLY: 9 kW 380 V 3/N/PE 50/60 Hz

COMPRESSED AIR: n/d

WATER: n/d

DIMENSIONS: 2200x800x1900 mm [87x31x75 in.]

MINIMAL WORKSPACE: 4000×2000 mm [157×79 in.]

WEIGHT: 950 kg [2094 lbs]

OPERATED BY: 2 Persons

ADDITIONAL INFORMATION

Compatible with the RZ-3 egg breaker. Compatible with the MT-3 tunnel washer. All of our pasteurizers are equipped with full automatization and full automatic C.I.P. system.
